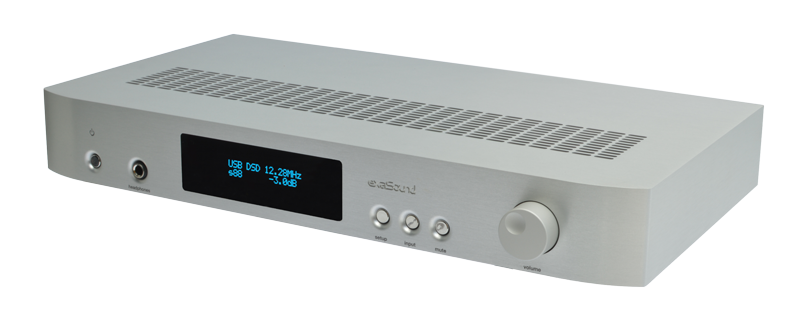

s88 Mark II 8-Channel Streaming DAC
Featuring a reference-grade 32-bit digital-to-analog converter and Roon-Ready streamer in stylish full-size mono-block enclosure, the s88 delights with its ergonomic simplicity and sonic perfection.

With refinements like autonomous balanced and unbalanced I/V stages and exaSound’s unique three-way galvanic isolation, ultimate resolution volume control and high-performance headphone amplifier, the s88 Eight-Channel Streaming DAC will uncover every detail in your high-resolution files, allowing you to hear the music just as it was recorded.

s88 features proprietary asynchronous USB streaming, ASIO and Core Audio drivers and FPGA core to achieve 32bit, low-jitter, bit-perfect signal path.

s88 will play natively DSD encoded files up to 8-channels DSD256, DXD 352.8 kHz and PCM up to 384 kHz.

In stereo mode s88 supports DSD playback of DSD512 files and streams.

With state-of-the-art performance, easy operation, remote diagnostics, online updates, upgradable output stages and exaSound’s acclaimed customer support, the s88 Streaming DAC will be the cornerstone of your music system for years to come.

exaSound Presents the New s88 Mark II
 s88 Mark II - New Features

  • s88 Mark II features new output stages with improved micro-symmetry of the balanced outputs.
  • Newly released Tidal Connect support allows the Tidal apps on iOS, Android, Mac OS and Windows to stream directly to the S88 Mark II.
  • New Audio Optimization Settings allow manual selection of PCM reconstructions filters and roll-off filters.
  • New Settings for SPDIF and Optical TOSLINK inputs allow compatibility with consumer-grade devices that exhibit high jitter, while maintaining sonic purity.
  • New Bluetooth Audio Streaming support makes s88 Mark II easily accessible in casual listening settings.
  • New Advanced Settings refine the transition playback states from track to track..
  • Upgrades for s88 DACs to the Mark II release will be available in the near future.
30-Day Risk-Free Trial
We invite you to experience our products for 30 days in your own listening environment. We believe that you will be pleasantly surprised by the discovery of a new level of sonic realism, dynamics and detail.

If for any reason you are not fully satisfied, you can return the products within 30 days.

Order now.

Products


Designed and hand-made entirely in Canada

exaSound’s in–house design delivers world recognized, award winning sonic purity

  • World's highest performance Sabre ES9038PRO DAC chip increases 4 times the paralleled DAC channels to bring more presence in the mid-range
  • Sophisticated reference voltage sources and master clock power circuits deliver more precise 3D imaging and more natural portrayal of transients
  • Each channel has autonomous balanced and unbalanced analogue output stages that can be used simultaneously. Components with superb linearity and enhanced power lines offer lower noise and distortion levels, fine micro dynamics and natural base reproduction
  • Octo-mono output stage topology offers reduced EM interference and reduced channel crosstalk, resulting in better detail and resolution
  • Future-proof design allows for upgrades of the output stages, the streamer module CPU, RAM and SSD storage
  • ZeroJitter™ — a unique true asynchronous USB interface with error correction assures accurate data reception
  • ZeroResolutionLoss™ — an exclusive volume control with four–way volume synchronization brings convenience and dynamic range comparable to the best analogue volume controls
  • GalvanicInfinity™ — affords complete galvanic isolation for ultimate external noise reduction
  • FemtoMaster™ — our quad-clock architecture, with 82 femtosecond master clock and 3 auxiliary stream-control clocks, minimizes jitter for maximum timing accuracy, image development and bass extension
  • Balanced internal design - yields the lowest analog noise and lowest distortion



Roon offers engaging, enjoyable way to browse your music. Via intelligent automatic cloud service library management, Roon delivers metadata for the user’s library and frees the user from the complexities of music library management.


s88 is a Roon Ready streamer and Roon Tested DAC. It has been profiled and tested by both Roon Labs and exaSound for maximum compatibility with Roon. Roon identifies exaSound devices and sends them audio optimized for their capabilities. Together, Roon and exaSound deliver the power, flexibility, and performance benefits of digital audio, with the easiest setup and highest reliability available.



Streaming Options



The s88 Streaming DAC offers master-quality Tidal and Qobuz streaming with Roon and Airplay. It delivers seamless, top-quality sound over wired or wireless connections, accessing high-resolution streaming services and local files. s88 can be used with the Roon Nucleus and with PC and Mac-based audio servers.
exaSound-made Gamma and Delta servers offer tight integration and improved ergonomics when used with the s88 Streaming DAC. The exaSound Delta server offers the highest CPU performance available on the market for multichannel DSP processing with Roon.



Benefits
    • Uncompromised fidelity — ENclusiv™ zero-configuration comprehensive sampling rate support up to native DSD512 and 32 bit PCM 384 kHz / DXD
    • Simplicity — Play multichannel or stereo in one playlist without changing settings
    • Forget guesswork — Zero-configuration automatic filter selection for every format and sampling rate. Manual reconstruction filter selection available for advanced applications
    • Love the convenience — Synchronized simultaneous operation from IR Remote, device controls and software dashboard
    • Unique ergonomics - acceleration-sensing volume knob delivers precise 0.5 dB volume changes when turned slowly and large volume correction with short fast turn
    • Blackest blacks — Ultimate clean power with 15 linear power conditioning stages, and an upgradable external power supply
    • Get lost in your music — Roon: the most engaging, enjoyable way to browse your music. RoonReady enables fast and highly reliable auto–discovery for instant setup
    • New Audio Optimization Settings allow manual selection of PCM reconstructions filters and roll-off filters
    • New Bluetooth Audio Streaming support makes s82 easily accessible in casual listening settings
    • New Advanced Settings refine the transition playback states from track to track


Features

  • Sample Rates: ENclusiv™ comprehensive sample rate support
    • DSD64: 2.8224 and 3.072 MHz
    • DSD128: 5.6448 and 6.144 MHz
    • DSD256: 11.2896 and12.288 MHz
    • DSD512: 22.5792 and 24.576 MHz (Stereo Only)
    • PCM/DXD: 44.1kHz to 384kHz at 32 bits
  • Converter Core: ESS Technologies 9038Pro reference monolythic 8 channel DAC
  • USB Input: Proprietary ZeroJitter™ asynchronous USB interface with error correction on classic B–Type connector, USB cable included
  • USB Host Support: Custom, high performance Mac OS & Windows ASIO drivers; MAC Core Audio drivers with DoP256 support
  • LAN Input: Wired Gigabit Ethernet and wireless WiFi 802.11ac supporting Ronn Raat, Signalyst NAA, UPnP, Bluetooth and Airplay audio streaming.
  • Server Support: Roon, HQPlayer, UPnP, Bluetooth and Airplay. Built-in multichannel UPnP server with DSD512 support.
  • Clock: FemtoMaster™ super–low jitter quad-clock architecture, with 82 femtosecond master clock and 3 auxiliary stream-control clocks
  • Power Conditioning: 15 linear power filtering stages, optional dedicated linear power supply for the DAC subsystem
  • Host Noise Rejection: GalvanicInfinity™ - Galvanic isolation between the USB subsystem, streamer module and the DAC circuitry eliminates ground loop noise and blocks computer–generated interference
  • Headphone Output: Third generation headphone amplifier, capable of driving low impedance and low sensitivity headphones
  • Additional Stereo Digital Inputs: SPDIF and TOSLINK inputs with customizable jitter control offer superb D/A conversion when used with CD transports
  • Analog Outputs: Simultaneously driven autonomous balanced and unbalanced output stages. Gold–plated balanced XLR and unbalanced RCA line outputs.
  • Power Management: 12V Trigger output
  • Remote Control: Included 7 button remote, s88 can be configured to work with most IR remotes
  • Remote Support, Remote Diagnostics, Remote Updates


Power Supply Options

The s88 Streaming DAC supports two power supply configurations.

Single Power Supply Configuration
the exaSound s88 Streaming DACs is offered with a desktop style 12V switching power supply. The s88 uses 15 internal linear power conditioning stages in cascaded configuration. Every subsystem is powered by dedicated power source. This sophisticated power conditioning makes the s88 very insensitive to the quality of the external power supply.

Using Additional Linear Power Supply for the DAC Analogue Stages
To achieve the lowest possible noise level, a third-party 12V linear power supply can be used for the DAC analogue circuits and IV stages. Customers interested in using additional third-party linear power source can order a Teddy Pardo power supply from the link below. Make sure to select the 5.5mm/2.5mm cable type.

Teddy12/2 - 12V 2A Power Supply
The Teddy 12/2 power supply is based on a superior regulator called SuperTeddyReg.
Click here to read more about Teddy Prado’s power supply technology.



Specifications
  • Power output: 12V, up to 2A
  • Mains Supply: 110-120V or 220-240V
  • Dimensions: 24x16x6 cm


exaSound s88 / s88 Mark II 8-channel Streaming DACs Owner's Manual
Specifications
D/A Converter IC
 ESS Technology ES9038PRO 32-bit, 8-channel
PRO series
PCM Sampling Rates - USB, Network Streaming
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz

DSD Sampling Rates:
• USB - Windows ASIO
• USB - Mac ASIO
• USB - Mac Core Audio
• LAN - Network streaming

Notes:
• ASIO Compatible player like Roon,JRiver and HQplayer is requited on Windows.
• ASIO on Mac OS is supported only by Roon and HQPlayer 3

DSD64:  2.8224MHz; 3.072MHz

DSD128: 5.6448MHz; 6.144MHz

DSD256: 11.2896MHz; 12.288MHz

DSD512 - Stereo Mode:
• USB - Windows ASIO
• USB - Mac ASIO
• LAN - Network Streaming

Note:
• DSD512 is not supported on USB - Mac Core Audio


DSD512: 22.5792MHz; 24.576MHz
PCM Sampling Rates-SPDIF Coaxial IN 1, Stereo
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
PCM Sampling Rates-Optical (TOSLINK) IN 2, Stereo
44.1kHz, 48kHz, 88.2kHz, 96kHz
Total Harmonic Distortion + Noise
0.00021% @ 1kHz, 0dBFS
Total Harmonic Distortion
0.00014% @ 1kHz, 0dBFS
Intermodulation Distortion
-128db 0.00004% @ 19kHz + 20kHz 0 dBFS
2nd order IMD
Signal-to-Noise Ratio
Balanced: 123.8 dB, A-weighted, 4.6 Vrms
Unbalanced: 123.5 dB, A-weighted, 2.0 Vrms
DAC Master Clock Jitter
0.082ps (82fsec) rms
Frequency Response
0Hz - 20kHz (-0.15dB) @ 44.1kHz / 48kHz sampling rates;
0Hz - 30kHz (-0.15dB) @ sampling rates  88.2kHz and higher
Phase:
Non-inverting
Channel Separation, typical
133dB @ 1kHz
Digital Inputs
LAN, USB, SPDIF Coaxial, SPDIF TOSLINK (optical), USB storage
 Line Outputs
 Balanced (XLR), Unbalanced (RCA), gold-plated contacts
Line Output Level
Balanced: 4.6 Vrms
Unbalanced: 2 Vrms
Line Output Impedance
Balanced: 400 ohms
Unbalanced: 200 ohms
Line Output Offset
< 5mV
 Headphone Amp Current Output  250mA peak
 Headphone Amp Output Impedance 1 Ohm, 20Hz-20kHz
 Headphone Amp Output Voltage  0-6Vrms
 Headphone Amp THD+N, typical  0.0012% , 1Vrms into 60ohms
 Headphone Amp Intermodulation Distortion
1Vrms into 60ohms
19kHz + 20kHz 2nd order IMD, typical
 -120dB  0.0001%
 Headphone Jack 1/4" TRS, SE
 Volume Control Four-way volume synchronization, Volume bypass, Channel trimming, Mute
ZeroResolutionLoss™ volume control provides all-time 0dB Full-Scale streaming
Acceleration-sensing volume knob
 Volume Control Step 0.5 dB
 Volume Matching Between Channels Better than 0.1 dB
Operating System Requirements: Windows
Windows 11 x64, Windows 10 x64, Windows 8 x86, Windows 8 x64, Windows 7, Windows XP
ASIO compatible player required for all Windows platforms
 Operating System Requirements: Mac Mac OS Mavericks, Yosemite, El Captain, Sierra High Sierra, Mojave, Big Sur
USB Ports    Type A: 2x USB 3.0, 2xUSB 2.0
Type B: USB 2.0
Ethernet Interface
Gigabit Ethernet
Wi-Fi Interface
Intel® Dual Band Wireless-AC 7260
802.11 ac/n
2.4 GHz, 5 GHz
Compliance PCI, CISP, FIPS, FISMA
IP Setup
 IP4, DHCP, manual configuration
Wireless Security Mode
WPA-PSK2 AES (Home)
 External Main Power Supply Input: 10-240V AC, 1.4A, 50-60Hz
Output: 12V DC, 5.4A
 Optional Linear Power Supply for DAC Analogue Stages Teddy Pardo 12/2 Linear Power Supply
Input: 110V or 240V, factory selected
Output: 12V DC, 2A
Compliance CE, FCC
Over Current Protection
 Power Consumption   < 64W
Power Jack Diameter Internal: 2.5mm External : 5.5mm
 Enclosure Premium machined and anodized aluminium mono-block
Finish: Silver, Black
 Dimensions
(W x H x D)
17.5 x 2.625 x 9.64 inches (445 x 70 x 245 mm)
Weight 11.46 lbs (5.2Kg)
Package dimensions (W x H x D) 20.75 x 8.25 x 16.5 inches (525 x 209 x 423 mm)
Package Weight
15.2 lbs (6.9Kg)


Firmware Updates
To check for updates go to http://s88.local, open Info page and tap or click the "Check Updates" button.  On older versions of the Web user interface updates are managed on the Settings page.

Version 47 (2022-05-12)
  • Fixed issue with login to wireless networks.
Version 46 (2022-04-20)
  • Support for the s82 Streaming DAC.
  • Completely redesigned Web user interface with touch-screen support.
  • Channel volume trimming levels can be saved to profiles and reloaded.
  • New System Info screen.
  • Light and Dark user interface themes.
  • System reset, reboot and shutdown commands.
  • Improved network configuration screen.
  • Improved diagnostic data reports.
  • Reduced memory usage in verbose logging mode.
  • Performance and stability improvements.
Version 43 (2021-11-11)
  • Support for s88 Mark II.
  • Tidal Connect Support for s88 Mark II
  • Audio Optimizations for s88 Mark II.
  • Advanced Settings for s88 Mark II.
  • Bluetooth Audio streaming for s88 Mark II - Experimental.
  • Performance and stability improvements.
Version 42 (2021-05-20)
  • Linux kernel update.
  • Performance and stability improvements.
Version 41 (2021-04-09)
  • Major update of the exaOS operating system.
  • Added Advanced Setting menu.
  • Added settings for DPLL control for SPDIF and Toslink inputs.
  • Updated Signalyst Network Audio Adapter.
  • Updated Roon RAAT.
  • Updated UPnP / Open Home Server.
  • Upgraded Samba sharing for better discovery with Windows 10.
  • Performance and stability improvements.
Version 31 (2020-09-03)
  • Support for e62, e68, e48 DACs.
  • Updated Signalyst Network Audio Adapter.
  • Updated Roon RAAT.
  • Updated CD ripping module.
  • Performance and stability improvements.
