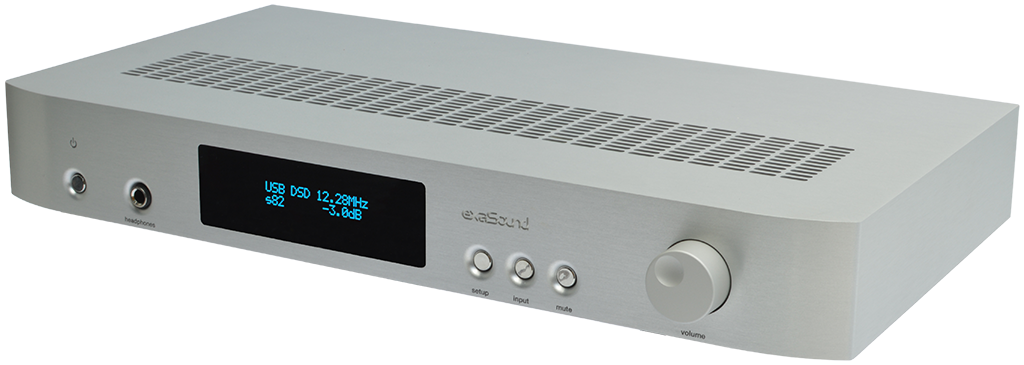

exaSound Presents the New s82 DSD512 Stereo Streaming DAC
The s82 DSD512 Streaming DAC takes the technologies introduced with the Stereophile Recommended A+ s88 DAC to the next level. Featuring a reference-grade 32-bit digital-to-analog converter and Roon Ready streamer in stylish full-size mono-block enclosure, the s82 delights with its ergonomic simplicity and sonic perfection.

With refinements like autonomous balanced and unbalanced I/V stages and exaSound’s unique three-way galvanic isolation, ultimate resolution volume control and high-performance headphone amplifier, the s82 Streaming DAC will uncover every detail in your high-resolution files, allowing you to hear the music just as it was recorded.

s82 features proprietary asynchronous USB streaming, ASIO and Core Audio drivers and FPGA core to achieve 32bit, low-jitter, bit-perfect signal path.

s82 will play natively DSD encoded files up to DSD512, DXD 352.8 kHz, PCM and MQA up to 384 kHz.

With state-of-the-art performance, easy operation, remote diagnostics, online updates, upgradable output stages and exaSound’s acclaimed customer support, the s82 Streaming DAC will be the cornerstone of your music system for years to come.

30-Day Risk-Free Trial
We invite you to experience our products for 30 days in your own listening environment. We believe that you will be pleasantly surprised by the discovery of a new level of sonic realism, dynamics and detail.

If for any reason you are not fully satisfied, you can return the products within 30 days.

Order Now

Products


Designed and hand-made entirely in Canada


exaSound’s in–house design delivers world recognized, award winning sonic purity

  • World's highest performance Sabre ES9038PRO DAC chip increases 4 times the paralleled DAC channels to bring more presence in the mid-range
  • Sophisticated reference voltage sources and master clock power circuits deliver more precise 3D imaging and more natural portrayal of transients
  • Each channel has autonomous balanced and unbalanced analogue output stages that can be used simultaneously. Components with superb linearity and separate power lines offer lower noise and distortion levels, fine micro dynamics and natural base reproduction
  • Dual-mono output stage topology offers reduced EM interference and reduced channel cross-talk, resulting in better detail and resolution
  • Future-proof design allows for upgrades of the output stages, the streamer module CPU, RAM and SSD storage
  • ZeroJitter™ — a unique true asynchronous USB interface with error correction assures accurate data reception
  • ZeroResolutionLoss™ — an exclusive volume control with four–way volume synchronization brings convenience and dynamic range comparable to the best analogue volume controls
  • GalvanicInfinity™ — affords complete galvanic isolation for ultimate external noise reduction
  • FemtoMaster™ — our quad-clock architecture, with 82 femtosecond master clock and 3 auxiliary stream-control clocks, minimizes jitter for maximum timing accuracy, image development and bass extension
  • Balanced internal design - yields the lowest analog noise and lowest distortion



Roon offers engaging, enjoyable way to browse your music. Via intelligent automatic cloud service library management, Roon delivers metadata for the user’s library and frees the user from the complexities of music library management.


s82 is a Roon Ready streamer and Roon Tested DAC. It has been profiled and tested by both Roon Labs and exaSound for maximum compatibility with Roon. Roon identifies exaSound devices and sends them audio optimized for their capabilities. Together, Roon and exaSound deliver the power, flexibility, and performance benefits of digital audio, with the easiest setup and highest reliability available.


The exaSound s82 DAC includes full MQA decoder and renderer performing full ‘unfold’ for delivering Hi-Res music data up to 24-bit 384kHz.

MQA (Master Quality Authenticated) is a new technology which delivers studio master quality audio using no more bandwidth than a CD quality file – so it can be easily streamed or downloaded. MQA encoded content is available from major streaming services and download sites.



Streaming Options



Newly released Tidal Connect support allows the Tidal apps on iOS, Android, Mac OS and Windows to stream directly to the S82 DAC.
The s82 Streaming DAC also offers master-quality Tidal and Qobuz streaming with Roon. It delivers seamless, top-quality sound over wired or wireless connections, accessing high-resolution streaming services and local files. s82 can be used with the Roon Nucleus and with PC and Mac-based audio servers.
exaSound-made Gamma and Delta servers offer tight integration and improved ergonomics when used with the s82 Streaming DAC. The exaSound Delta server offers the highest CPU performance when DSP processing is required with Roon.



Benefits
    • Uncompromised fidelity — ENclusiv™ zero-configuration comprehensive sampling rate support up to native DSD512 and 32 bit PCM 384 kHz / DXD
    • Simplicity — Play all Stereo file and stream formats in one playlist without changing settings
    • Forget guesswork — Zero-configuration automatic filter selection for every format and sampling rate. Manual reconstruction filter selection available for advanced applications.
    • Love the convenience — Synchronized simultaneous operation from IR Remote, device controls and software dashboard
    • Unique ergonomics - acceleration-sensing volume knob delivers precise 0.5 dB volume changes when turned slowly and large volume correction with short fast turn
    • Blackest blacks — Ultimate clean power with 16 linear power conditioning stages, and an upgradable external power supply
    • Get lost in your music — Roon is the most engaging, enjoyable way to browse your music. Roon Ready enables fast and highly reliable auto–discovery for instant setup
    • New Audio Optimization Settings allow manual selection of PCM reconstructions filters and roll-off filters
    • New Bluetooth Audio Streaming support makes s82 easily accessible in casual listening settings
    • New Advanced Settings refine the transition playback states from track to track


Features

  • Sample Rates: ENclusiv™ comprehensive sample rate support
    • DSD64: 2.8224 and 3.072 MHz
    • DSD128: 5.6448 and 6.144 MHz
    • DSD256: 11.2896 and12.288 MHz
    • DSD512: 22.5792 and 24.576 MHz
    • PCM/DXD: 44.1kHz to 384kHz at 32 bits
    • MQA full ‘unfold’ for delivering Hi-Res music data up to 384kHz
  • Converter Core: ESS Technologies 9038Pro reference monolithic DAC
  • USB Input: Proprietary ZeroJitter™ asynchronous USB interface with error correction on classic B–Type connector, USB cable included
  • USB Host Support: Custom, high performance Mac OS & Windows ASIO drivers; MAC Core Audio drivers with DoP256 support
  • LAN Input: Wired Gigabit Ethernet and wireless Wi Fi 802.11ac supporting Ronn RAAT, Signalyst NAA, UPnP, Bluetooth and Airplay audio streaming.
  • Server Support: Roon, HQPlayer, UPnP, Bluetooth and Airplay. Built-in multichannel UPnP server with DSD512 support.
  • Clock: FemtoMaster™ super–low jitter quad-clock architecture, with 82 femtosecond master clock and 3 auxiliary stream-control clocks
  • Power Conditioning: 16 linear power filtering stages, separate power lines for L/R channels, optional dedicated linear power supply for the DAC subsystem
  • Host Noise Rejection: GalvanicInfinity™ - Galvanic isolation between the USB subsystem, streamer module and the DAC circuitry eliminates ground loop noise and blocks computer–generated interference
  • Headphone Output: Headphone amplifier with doubled current output compared to the s88 DAC provides improved driving of low impedance and low sensitivity headphones
  • Additional Digital Inputs: SPDIF and TOSLINK inputs with customizable jitter control offer superb D/A conversion when used with CD transports
  • Analog Outputs: Simultaneously driven autonomous balanced and unbalanced output stages. Gold–plated balanced XLR and unbalanced RCA line outputs
  • Enhanced micro-symmetry of the balanced outputs
  • Power Management: 12V Trigger output
  • Remote Control: Included 7 button remote, s82 can be configured to work with most IR remotes
  • Remote Support, Remote Diagnostics, Remote Updates
Power Supply Options

The s82 Streaming DAC supports two power supply configurations.

Single Power Supply Configuration
the exaSound s82 Streaming DACs is offered with a desktop style 12V switching power supply. The s82 uses 16 internal linear power conditioning stages in cascaded configuration. Every subsystem is powered by dedicated power source. This sophisticated power conditioning makes the s82 very insensitive to the quality of the external power supply.

Using Additional Linear Power Supply for the DAC Analogue Stages
To achieve the lowest possible noise level, a third-party 12V linear power supply can be used for the DAC analogue circuits and IV stages.

exaSound s82 Streaming DACs Owner's Manual
exaSound s82 Streaming DACs Owner’s Manual.pdf
Last updated on October 7, 2022



Specifications
D/A Converter IC
 ESS Technology ES9038PRO 32-bit, PRO series
PCM Sampling Rates - USB, Network Streaming
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
MQA Sampling Rates - USB, Network Streaming   MQA full ‘unfold’ for delivering Hi-Res music data up to 384kHz

DSD Sampling Rates:
• USB - Windows ASIO
• USB - Mac ASIO
• USB - Mac Core Audio
• LAN - Network streaming

Notes:
• ASIO Compatible player like Roon,JRiver and HQplayer is requited on Windows.
• ASIO on Mac OS is supported only by Roon and HQPlayer 3

DSD64:  2.8224MHz; 3.072MHz

DSD128: 5.6448MHz; 6.144MHz

DSD256: 11.2896MHz; 12.288MHz

DSD512
• USB - Windows ASIO
• USB - Mac ASIO
• LAN - Network Streaming

Note:
• DSD512 is not supported on USB - Mac Core Audio


DSD512: 22.5792MHz; 24.576MHz
PCM Sampling Rates-SPDIF Coaxial IN 1, Stereo
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
PCM Sampling Rates-Optical (TOSLINK) IN 2, Stereo
44.1kHz, 48kHz, 88.2kHz, 96kHz
Total Harmonic Distortion + Noise
0.00021% @ 1kHz, 0dBFS
Total Harmonic Distortion
0.00014% @ 1kHz, 0dBFS
Intermodulation Distortion
-128db 0.00004% @ 19kHz + 20kHz 0 dBFS
2nd order IMD
Signal-to-Noise Ratio
Balanced: 123.8 dB, A-weighted, 4.6 Vrms
Unbalanced: 123.5 dB, A-weighted, 2.0 Vrms
DAC Master Clock Jitter
0.082ps (82fsec) rms
Frequency Response
0Hz - 20kHz (-0.15dB) @ 44.1kHz / 48kHz sampling rates;
0Hz - 30kHz (-0.15dB) @ sampling rates  88.2kHz and higher
Phase:
Non-inverting
Channel Separation, typical
133dB @ 1kHz

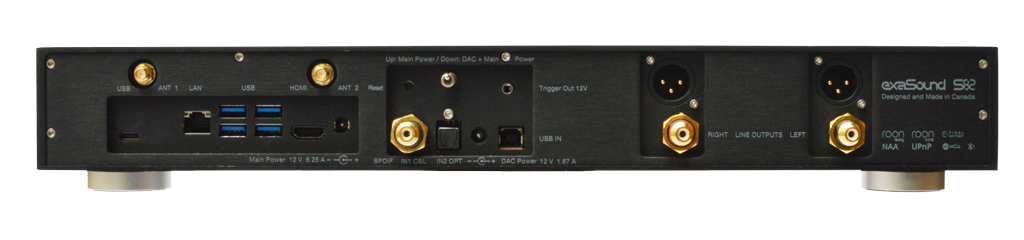

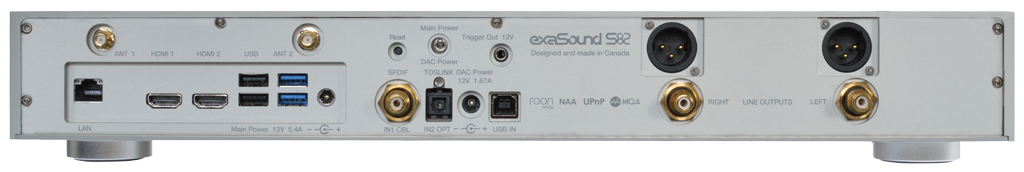

Digital Inputs
LAN, USB, SPDIF Coaxial, SPDIF TOSLINK (optical), USB storage
 Line Outputs
 Balanced (XLR), Unbalanced (RCA), gold-plated contacts
Line Output Level
Balanced: 4.6 Vrms
Unbalanced: 2 Vrms
Line Output Impedance
Balanced: 400 ohms
Unbalanced: 200 ohms
Line Output Offset
< 5mV
 Headphone Amp Current Output  500mA peak
 Headphone Amp Output Impedance 1 Ohm, 20Hz-20kHz
 Headphone Amp Output Voltage  0-6Vrms
 Headphone Amp THD+N, typical  0.0012% , 1Vrms into 60ohms
 Headphone Amp Intermodulation Distortion
1Vrms into 60ohms
19kHz + 20kHz 2nd order IMD, typical
 -120dB  0.0001%
 Headphone Jack 1/4" TRS, SE
 Volume Control Four-way volume synchronization, Volume bypass, Channel trimming, Mute
ZeroResolutionLoss™ volume control provides all-time 0dB Full-Scale streaming
Acceleration-sensing volume knob
 Volume Control Step 0.5 dB
 Volume Matching Between Channels Better than 0.1 dB
Operating System Requirements: Windows
Windows 11 x64, Windows 10 x64, Windows 8 x86, Windows 8 x64, Windows 7, Windows XP
ASIO compatible player required for all Windows platforms
 Operating System Requirements: Mac Mac OS Mavericks, Yosemite, El Captain, Sierra High Sierra, Mojave, Big Sur
USB Ports    Type A: 2x USB 3.0, 2xUSB 2.0
Type B: USB 2.0
Ethernet Interface
Gigabit Ethernet
Wi-Fi Interface
Intel® Dual Band Wireless-AC 7260
802.11 ac/n
2.4 GHz, 5 GHz
Compliance PCI, CISP, FIPS, FISMA
IP Setup
 IP4, DHCP, manual configuration
Wireless Security Mode
WPA-PSK2 AES (Home)
 External Main Power Supply Input: 10-240V AC, 1.4A, 50-60Hz
Output: 12V DC, 5.4A
 Power Consumption   < 64W
Power Jack Diameter Internal: 2.5mm External : 5.5mm
 Enclosure Premium machined and anodized aluminium mono-block

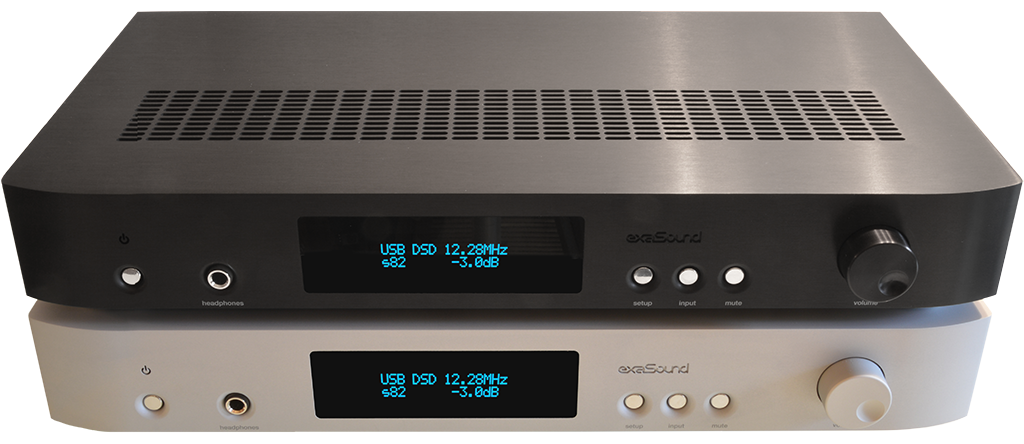

Finish: Silver, Black
 Dimensions
(W x H x D)
17.5 x 2.625 x 9.64 inches (445 x 70 x 245 mm)
Weight 11.46 lbs (5.2Kg)
Package dimensions (W x H x D) 20.75 x 8.25 x 16.5 inches (525 x 209 x 423 mm)
Package Weight
15.2 lbs (6.9Kg)


Firmware Updates
To check for updates go to http://s82.local, open Info page and tap or click the "Check Updates" button.  On older versions of the Web user interface updates are managed on the Settings page.

Version 49 (2022-09-29)
  • Web Streaming via HDMI - experimental, under development. Includes support for YouTube, Qobuz and TuneIn Radio. To enable go to the General Settings page, scroll down and click Web Streaming.
  • Volume Presets - volume level for individual channels (volume trimming) can be saved to and loaded from named profiles.
  • Stability and performance improvements.
Version 47 (2022-05-12)
  • Fixed issue with login to wireless networks.
Version 46 (2022-04-26)
  • Support for the s82 Streaming DAC.
  • Completely redesigned Web user interface with touch-screen support.
  • Channel volume trimming levels can be saved to profiles and reloaded.
  • New System Info screen.
  • Light and Dark user interface themes.
  • System reset, reboot and shutdown commands.
  • Improved network configuration screen.
  • Improved diagnostic data reports.
  • Reduced memory usage in verbose logging mode.
  • Performance and stability improvements.
Version 43 (2021-11-11)
  • Support for s88 Mark II.
  • Tidal Connect Support for s88 Mark II
  • Audio Optimizations for s88 Mark II.
  • Advanced Settings for s88 Mark II.
  • Bluetooth Audio streaming for s88 Mark II - Experimental.
  • Performance and stability improvements.
Version 42 (2021-05-20)
  • Linux kernel update.
  • Performance and stability improvements.
Version 41 (2021-04-09)
  • Major update of the exaOS operating system.
  • Added Advanced Setting menu.
  • Added settings for DPLL control for SPDIF and Toslink inputs.
  • Updated Signalyst Network Audio Adapter.
  • Updated Roon RAAT.
  • Updated UPnP / Open Home Server.
  • Upgraded Samba sharing for better discovery with Windows 10.
  • Performance and stability improvements.
Version 31 (2020-09-03)
  • Support for e62, e68, e48 DACs.
  • Updated Signalyst Network Audio Adapter.
  • Updated Roon RAAT.
  • Updated CD ripping module.
  • Performance and stability improvements.
